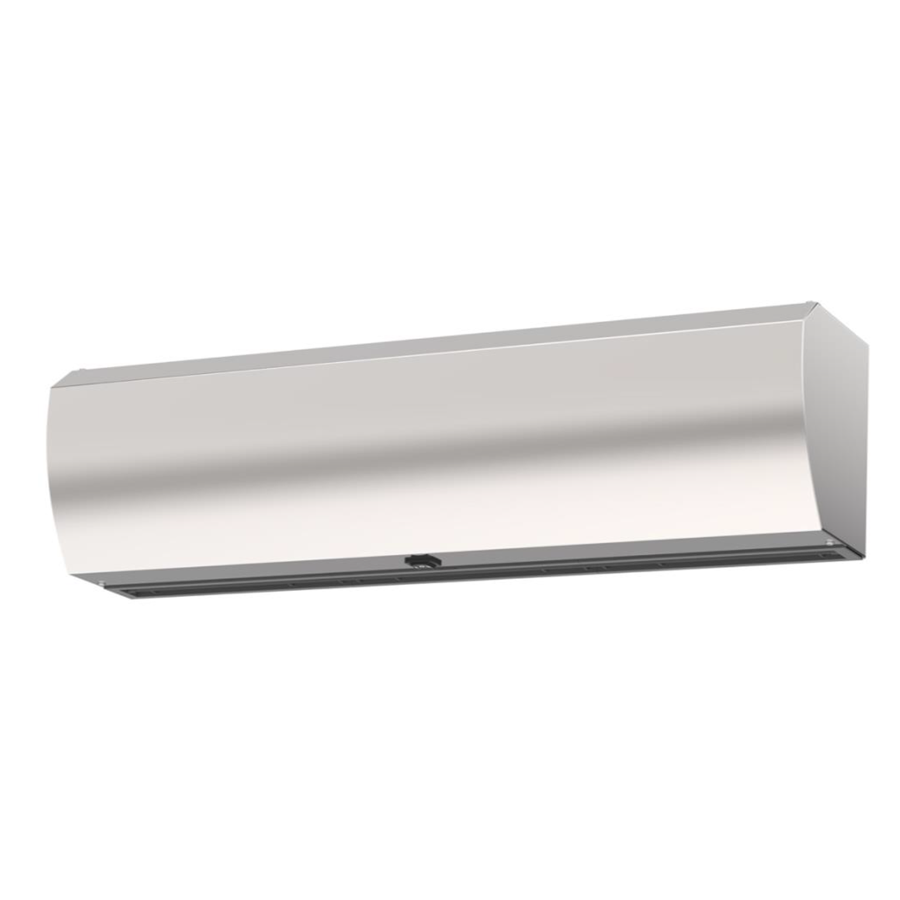

Commercial Air Curtain Stainless Steel
| Width Size |
3 Feet |
4 Feet |
5 Feet |
6 Feet |
| Dimension (mm) |
900 x 230 x 212 |
1200 x 230 x 212 |
1500 x 230 x 212 |
1800 x 230 x 212 |
| Air Velocity At
Nozzle |
18-21 m/s |
18-21 m/s |
18-21 m/s |
18-21 m/s |
| Noise Level (dB) |
55 – 65 dB |
55 – 65 dB |
55 – 65 dB |
55 – 65 dB |
| Body Material |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| No. Of Blowers |
3 |
4 |
5 |
6 |
| No. Of Motors |
2 |
2 |
3 |
3 |
| HP |
0.56 |
0.76 |
0.95 |
1.12 |
| Voltage |
220V / 50Hz |
220V / 50Hz |
220V / 50Hz |
220V / 50Hz |
| No. Of Shafts |
1 Single + 1
Double |
2 Double |
1 Single + 2
Double |
3 Double |
| Power Wattage |
410 W |
560 W |
700 W |
820 W |
| Phase |
Single |
Single |
Single |
Single |
| RPM (Max) |
2700 |
2700 |
2700 |
2700 |
| Blower Material |
ABS |
ABS |
ABS |
ABS |
| Air Volume |
1520 |
2027 |
2534 |
3040 |
